STABILIZERS
FULL CARBON PREPREG
THE PERFECT BALANCE
SPECIFICATIONS
The stabilizer is an essential part of flight balance and overall foil performance.
Our range of stabilizers is 100% compatible with all our wing categories.
Designed with very slim profiles, Goliath stabilizers are flat to provide the most efficient projected surface possible, minimizing the drag of the tips as they move along the foil’s drift angle.
Lively, fast and comfortable, Goliath stabilizers are ultra-efficient.
They make it easy to regulate the foil’s horizontal trim and provide a perfect gliding sensation… A subtle balance of power, speed and control.
100% compatible with all our wings
SURFACE
316 cm²
SPAN
480 mm
CHORD
82 mm
300 cm²
460 mm
81.4 mm
272 cm²
440 mm
77.6 mm
256 cm²
420 mm
76.6 mm
236 cm²
400 mm
74.7 mm
218 cm²
380 mm
73 mm
182 cm²
360 mm
66 mm
HYDRODYNAMIC
Designed with very slim profiles, Goliath stabilizers are flat to provide the most efficient projected surface possible, minimizing the drag of the tips as they move along the foil’s drift angle.
TECHNOLOGY
Full carbon prepreg + autoclave.
Prepreg technology allows fabrics to be mixed and carbon fibers to be placed in different directions to achieve precise, perfectly controlled stiffness.
Power transmission is instantaneous.
Finish : Hand-sanded surfaces (Gr.1200) : for perfect glide and to make profiles work over wide performance ranges.
Fiber Type : Carbon HR : T700

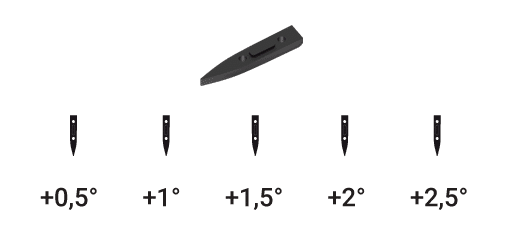

SHIMS
Five positive shims are available for fine-tuning the offset of your stabilizer to your own parameters, for a tailor-made, stabilized, balanced and comfortable flight.
